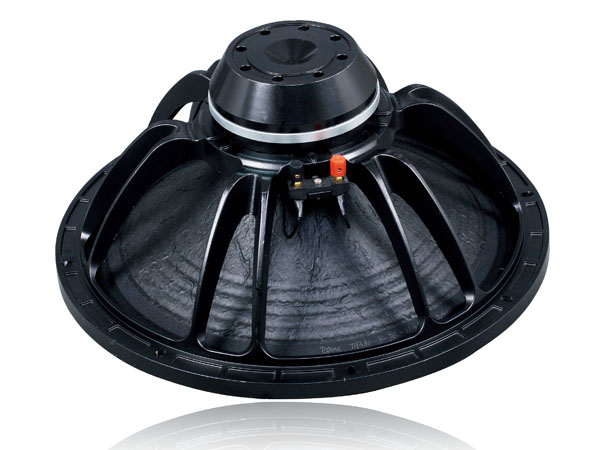

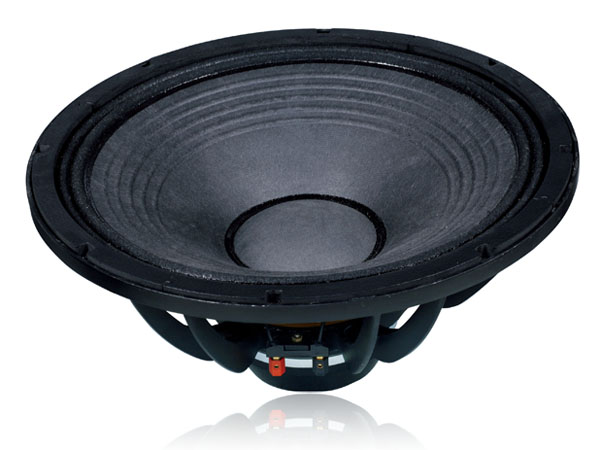

Difuzor 15” RZS 15N75

Prețul inițial a fost: 1.000,00 lei.Prețul curent este: 750,00 lei.

15N75
General Specifications
Norminal Diameter	380 mm/15 in
Norminal Impedance	8 Ω
Rted Power AES(1)	400 W
Continuous Program Power(2)	800 W
Sensitivity @ 1W/1m(3)	99 db
Voice Coil Diameter	75.5 mm/3.0 in
Voice Coil Winding Depth	24 mm
Magnetic Gap Depth	8 mm
Magnet Weight	0.46 kg
Net Weight	6 kg
Thiele & Small Parameters
Revc	6.2 Ω
Qms	3.767
Qts	0.396
Cms	73.645u M/N
Vas	76.448m MI
X max	±5 mm
Constructive Characteristics
Magnet	Neodymium
Basket Material	Aluminum
Voice Coil Winding Material	Copper Clad Aluminium Flat Wire
Voice Coil Former Material	Fiberglass
Cone Material	Paper
Cone Treatment	NO
Surround Material	Treated Cloth
Dust Dome Material	Paper
Mounting Information
Overall Diameter	392 mm
Baffle Cutout Diameter	388 mm
Mounting Holes	8 holes 6.5 ф 372 mm
Fo	54.988 Hz
Qes	0.443
Mms	113.751k g
BL	23.464 TM
Sd	85.5m M
SPLo	66484
Levc	646.895u H
